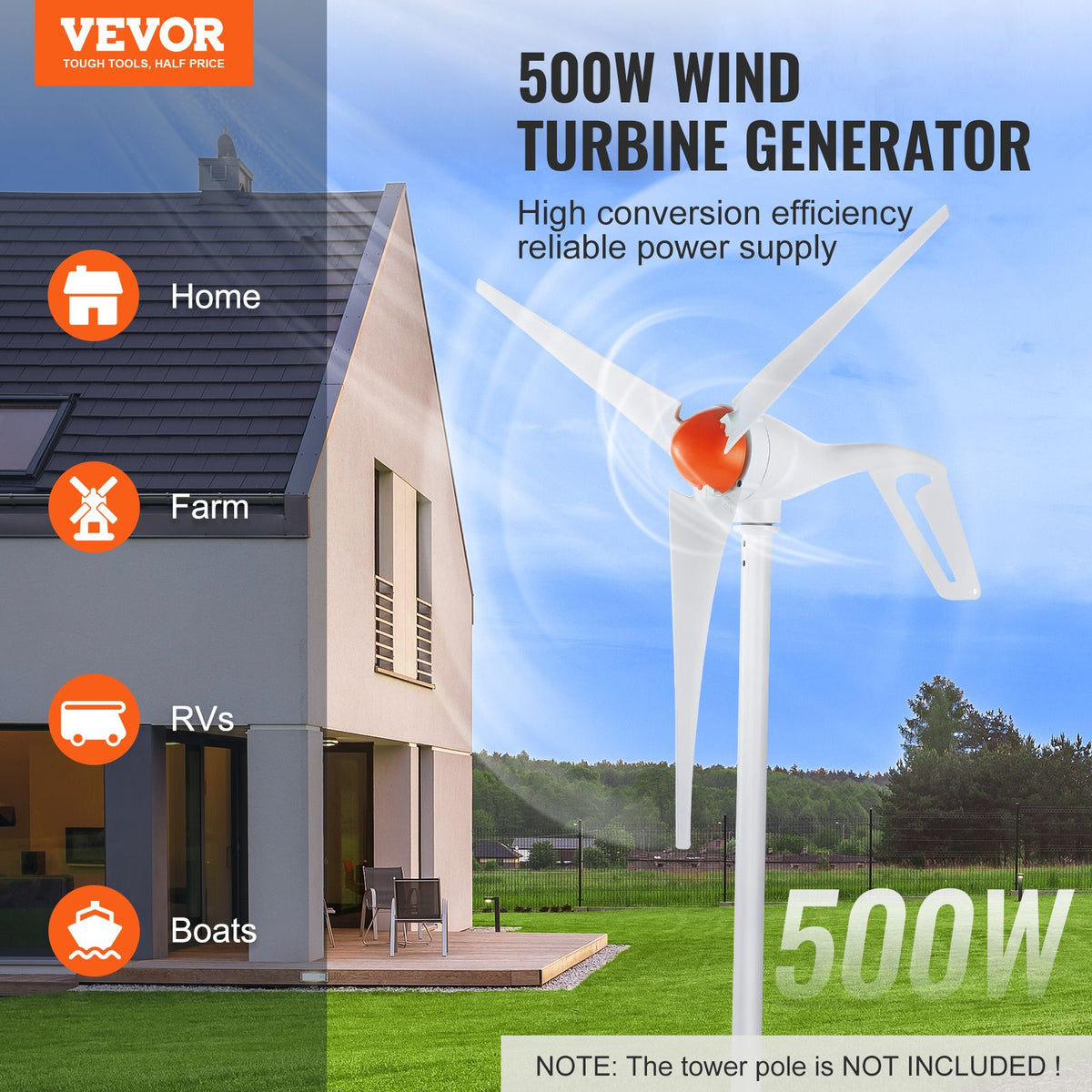

VEVOR 500W 12V Wind Turbine Kit, 3-Blade, MPPT Controller & Anemometer

Add wind charging to your 12V battery bank for power day and night.

This VEVOR 500W wind turbine uses a 12V three-phase AC permanent magnet generator and three reinforced fibreglass-nylon blades on a 1.2m rotor. It starts turning at 2.5m/s, works across 3–25m/s, and reaches its rated output at 12m/s.

An MPPT controller is included to manage charging into your battery system, and an anemometer lets you monitor wind speed at the site. The die-cast aluminium body is waterproof and corrosion resistant, and the tail turns the turbine to face the wind.

It runs at around 55dB on dual bearings. As with any small turbine, real output depends heavily on your average wind speed and how high and clear the mast is.

• 500W rated, 12V three-phase permanent magnet generator
• MPPT charge controller included
• Anemometer included for wind speed monitoring
• 3 reinforced fibreglass-nylon blades, 1.2m rotor diameter

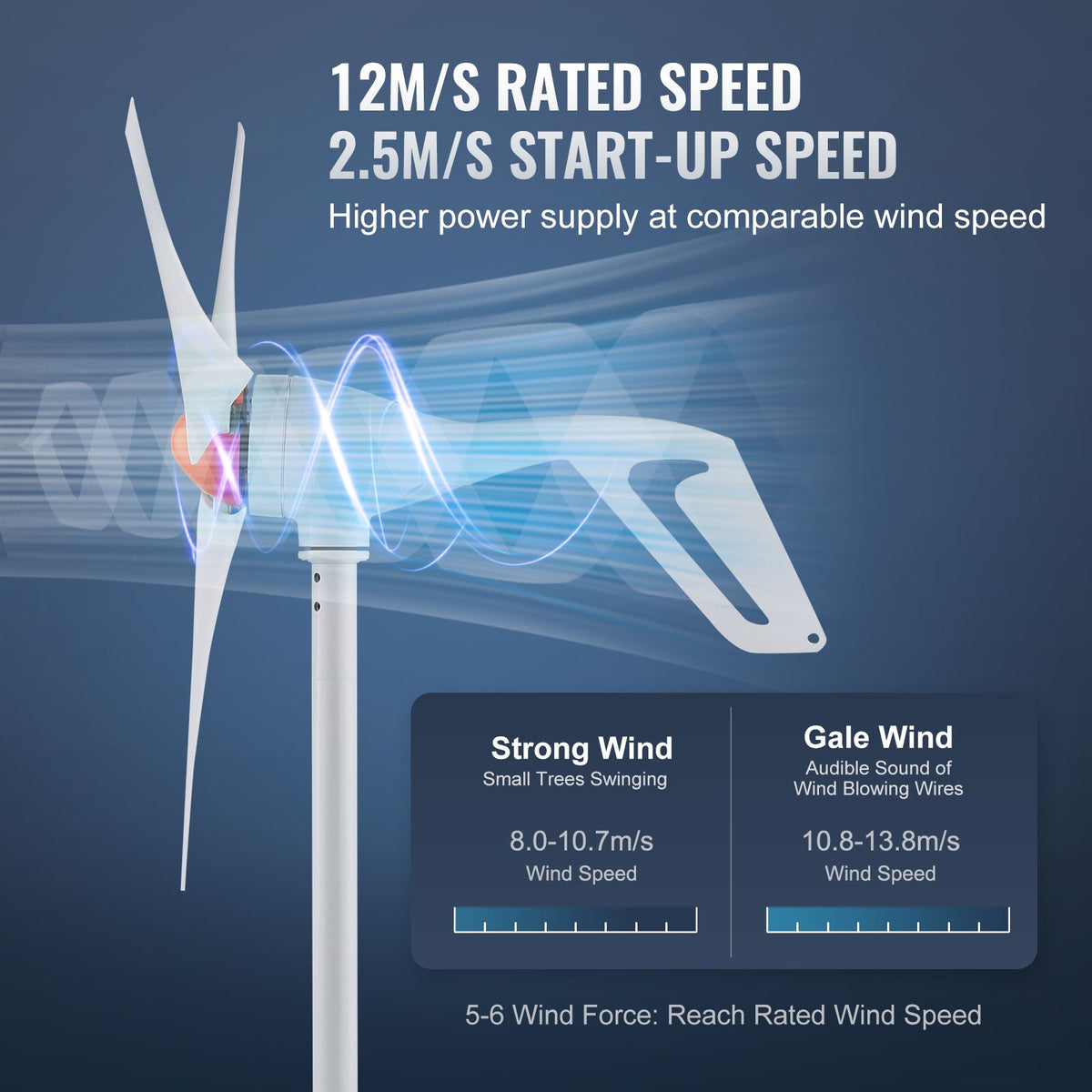

• 2.5m/s start-up wind speed, 12m/s rated wind speed

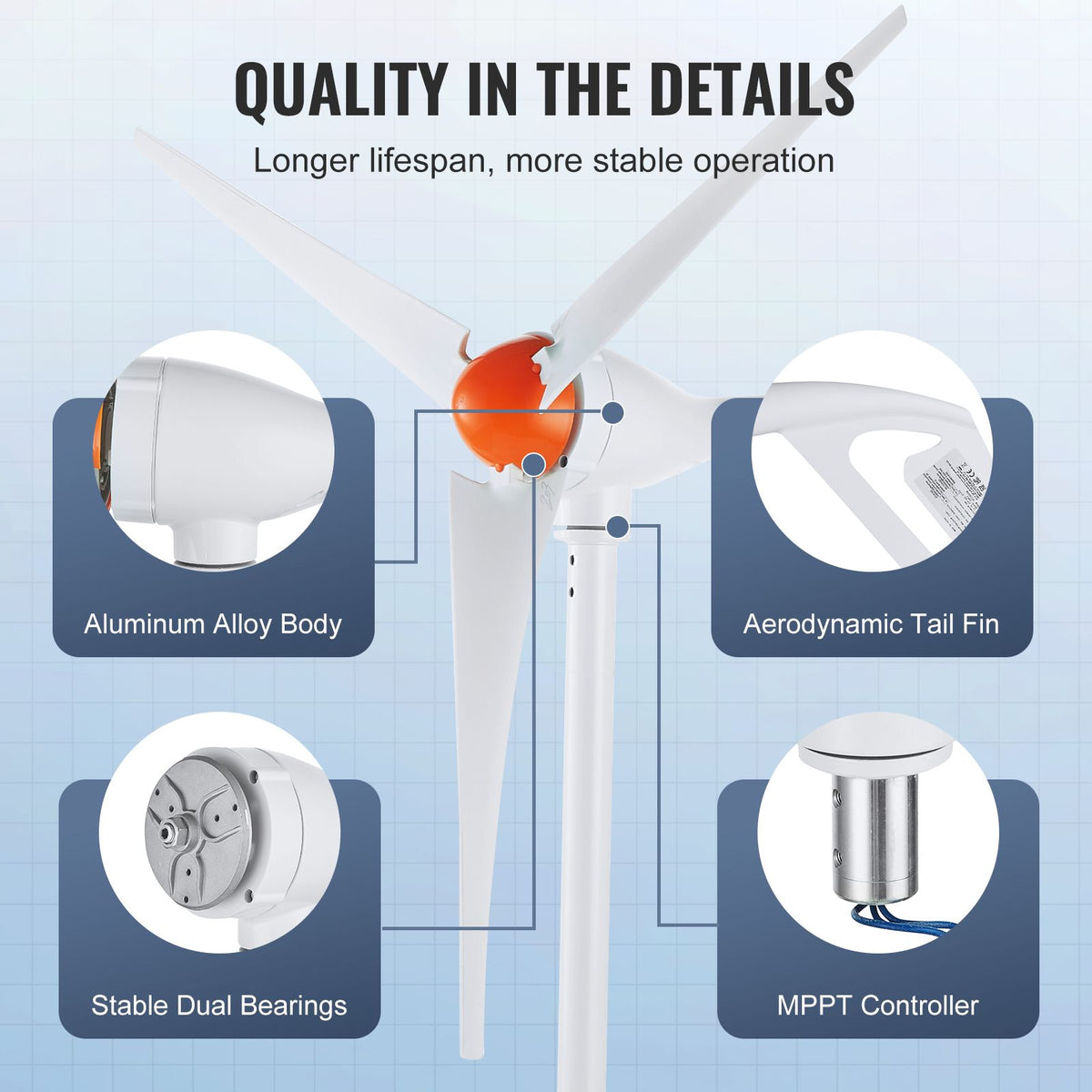

• Die-cast aluminium body, waterproof and corrosion resistant
• Tail vane turns the turbine into the wind
• Around 55dB operating noise, dual bearings

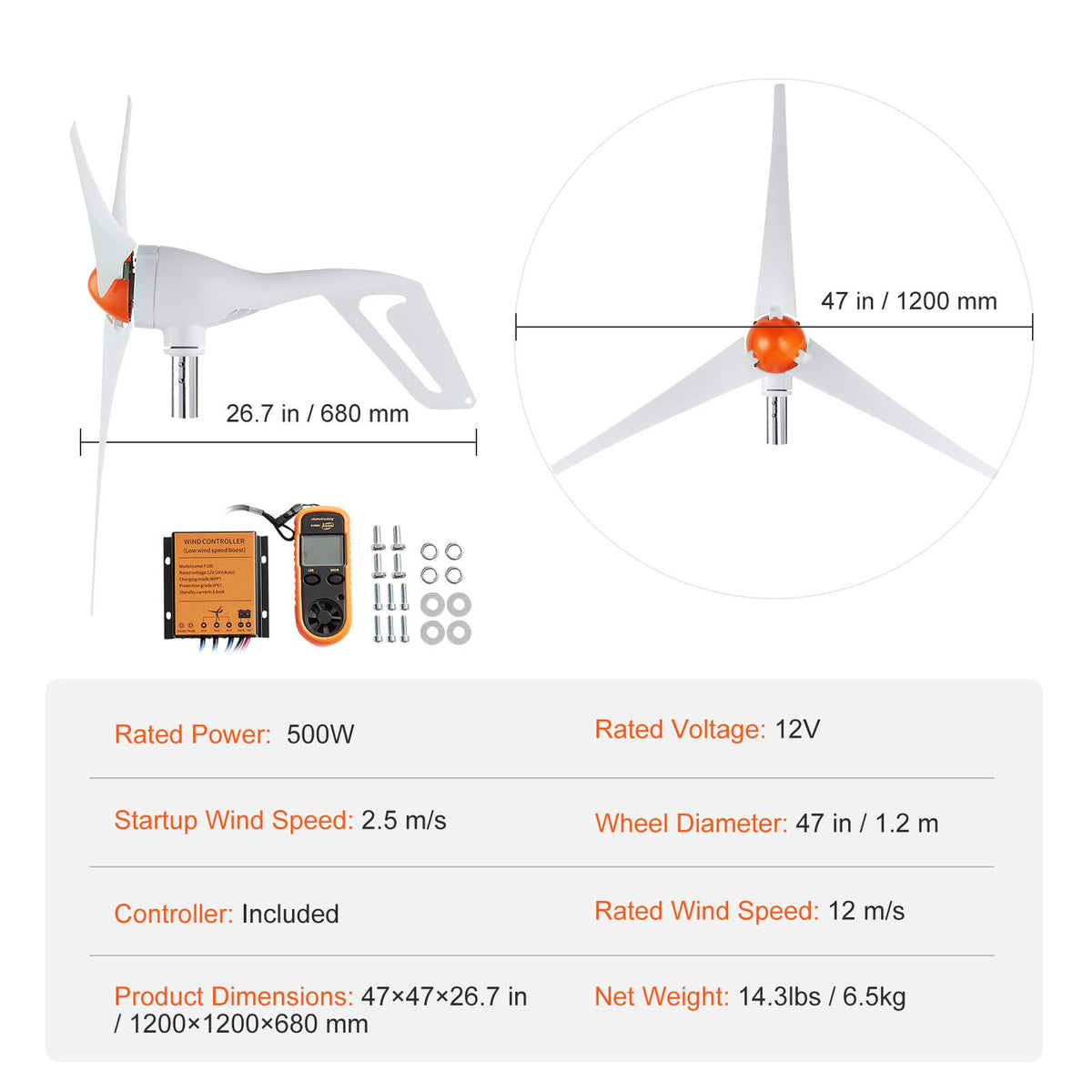

Rated power: 500W
Rated voltage: 12V
Generator: Three-phase AC permanent magnet synchronous
Controller: MPPT (included)
Start-up wind speed: 2.5m/s
Rated wind speed: 12m/s
Operating wind speed: 3–25m/s

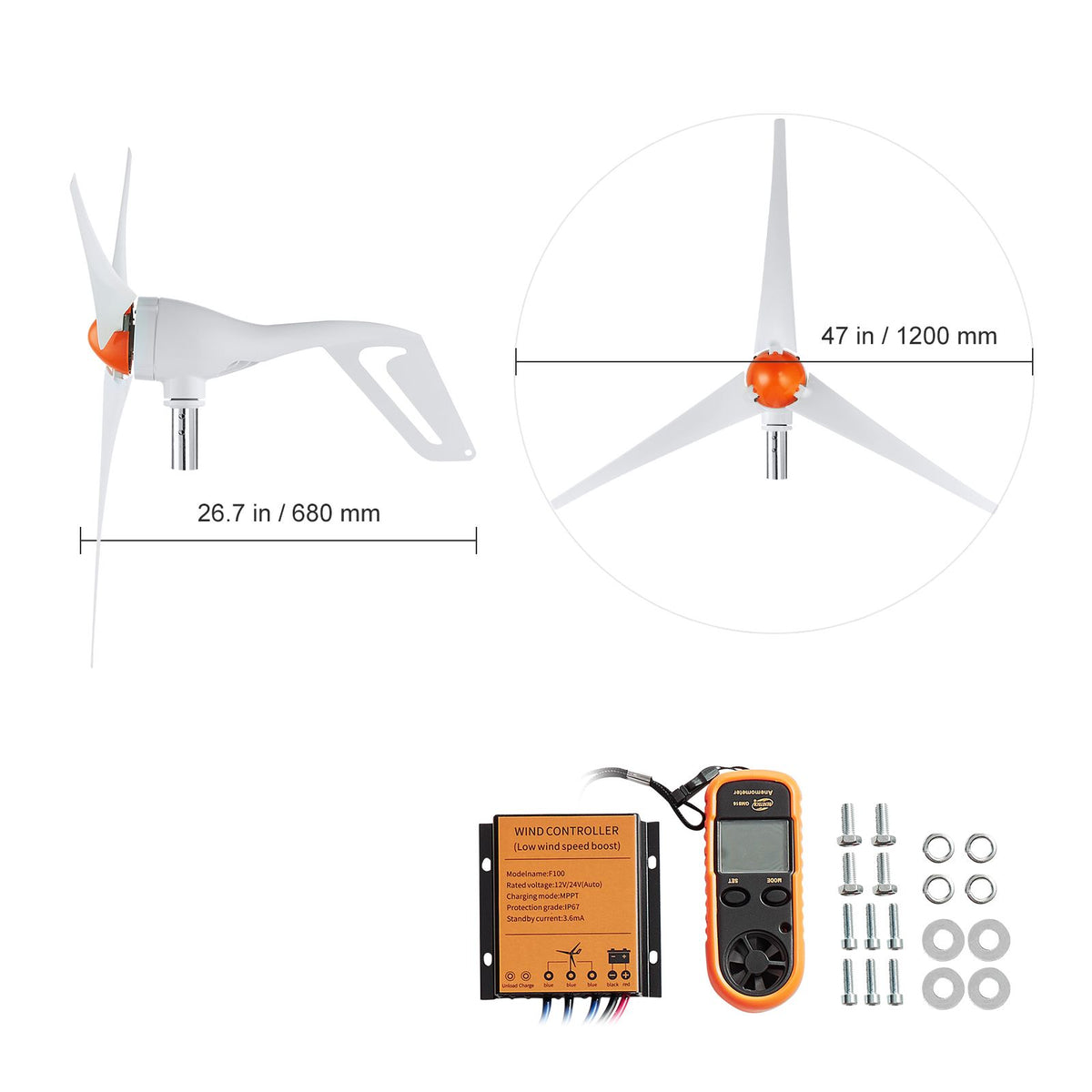

Rotor diameter: 1.2m
Number of blades: 3
Blade material: Reinforced fibreglass nylon
Body material: Die-cast aluminium

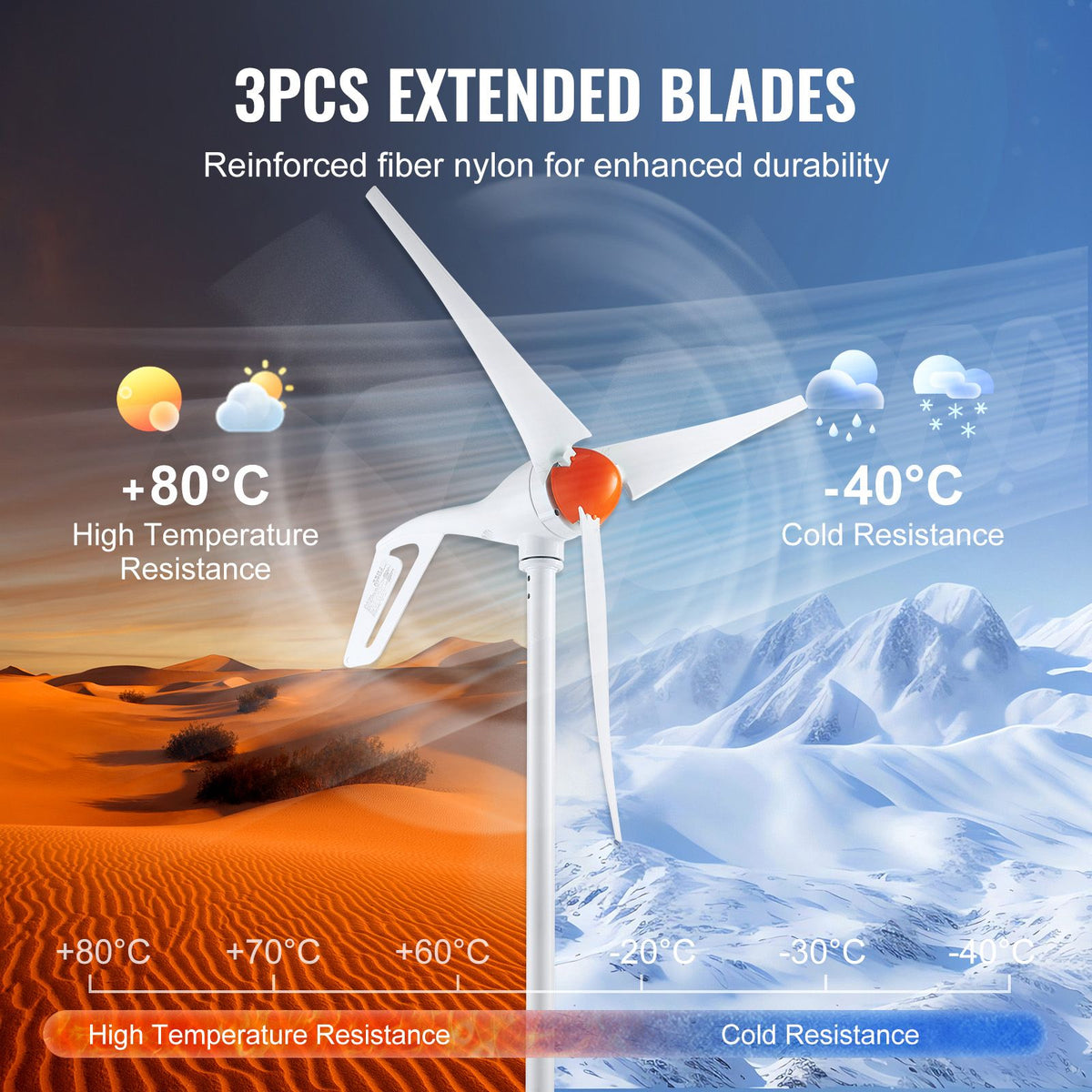

Operating temperature: -40°C to 80°C
Noise level: About 55dB
Weight: About 6.5kg (manufacturer listing)
Mounting: Fits a pole of about 80mm outside diameter (pole not included)

• Off-grid cabins and sheds with a 12V battery bank
• Farms and rural properties with steady wind
• Supplementing solar through winter and overnight
• Coastal and elevated sites

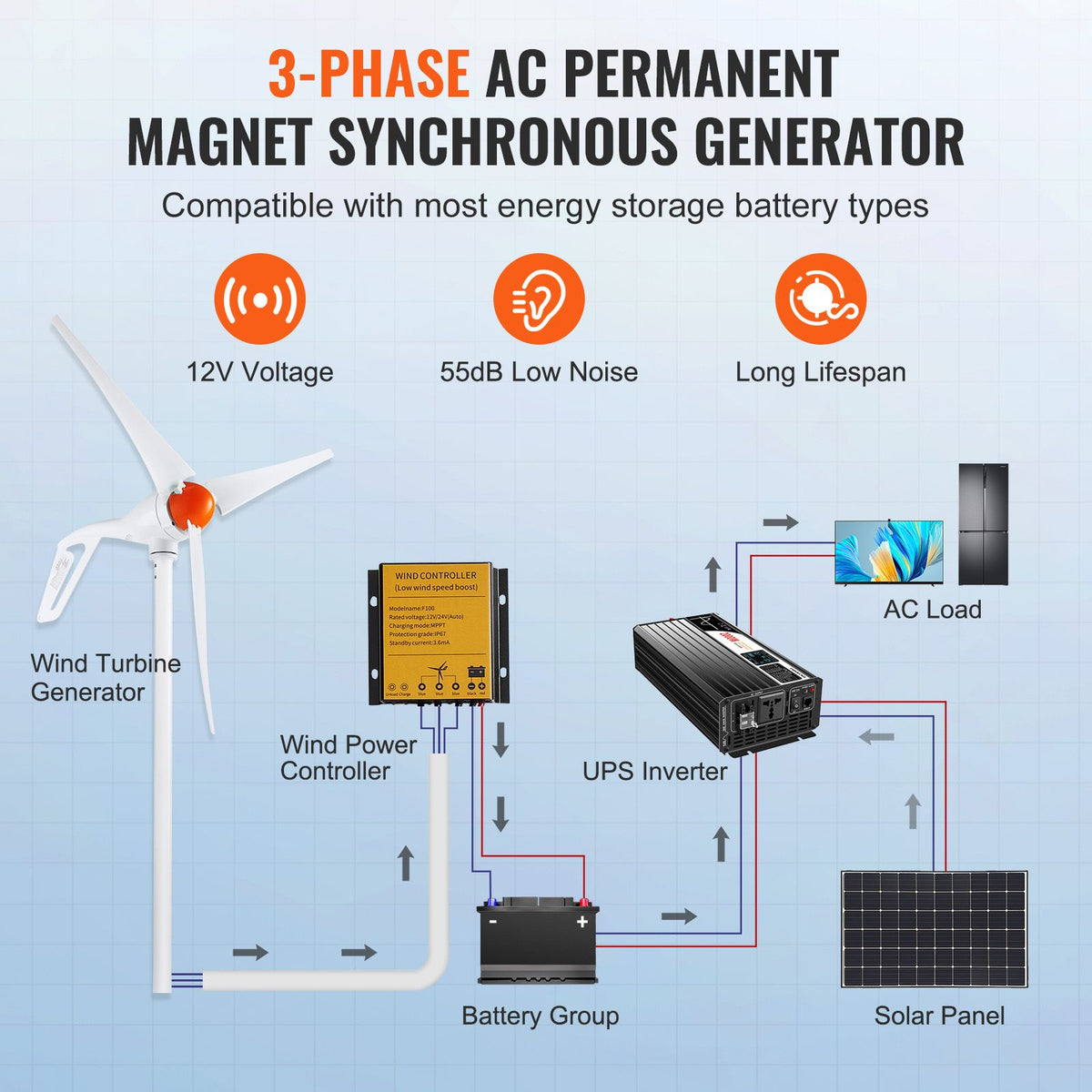

Solar stops at sunset and slows on cloudy winter days, which is often when wind picks up. Adding a small turbine gives your battery bank a second charging source so you depend less on any one system.

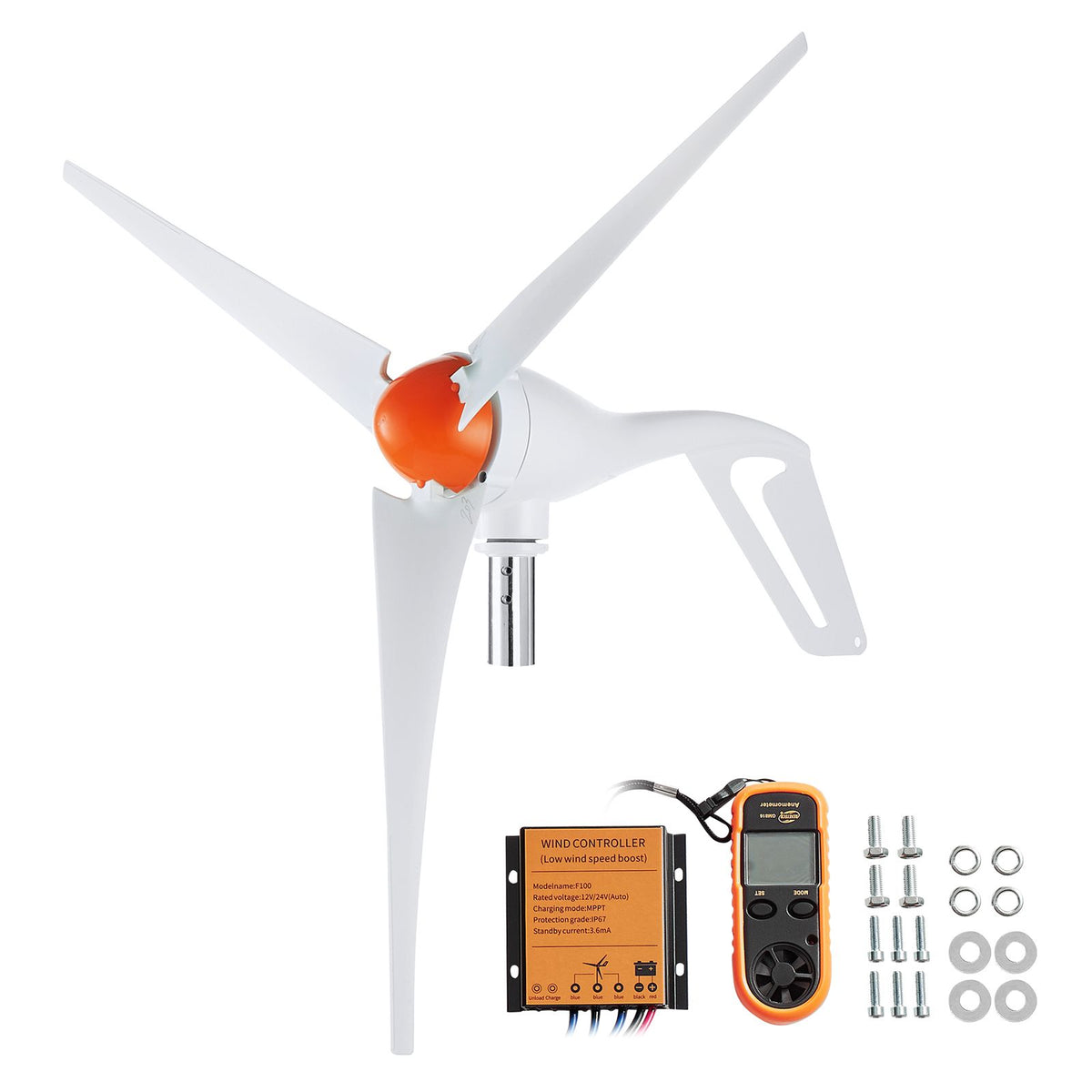

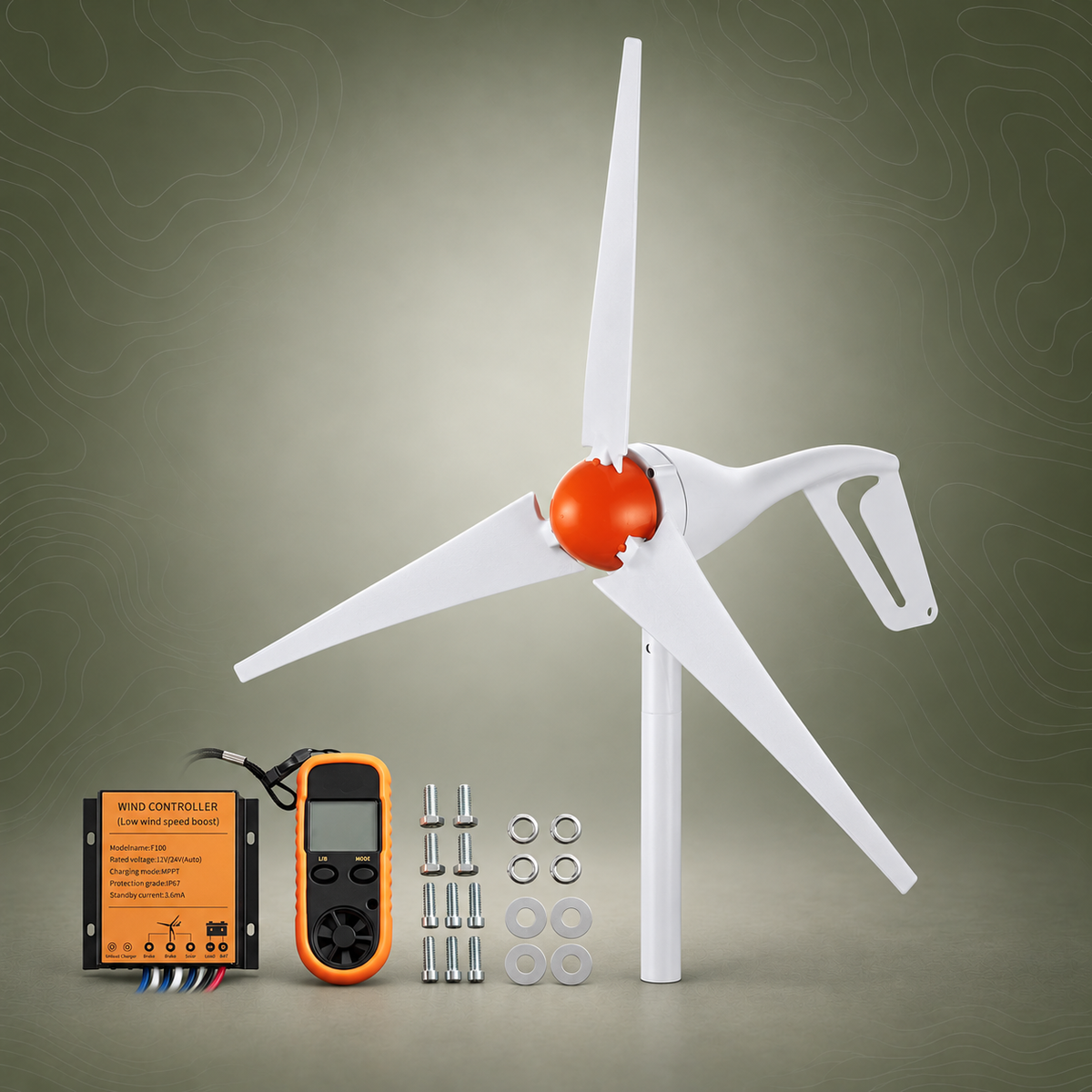

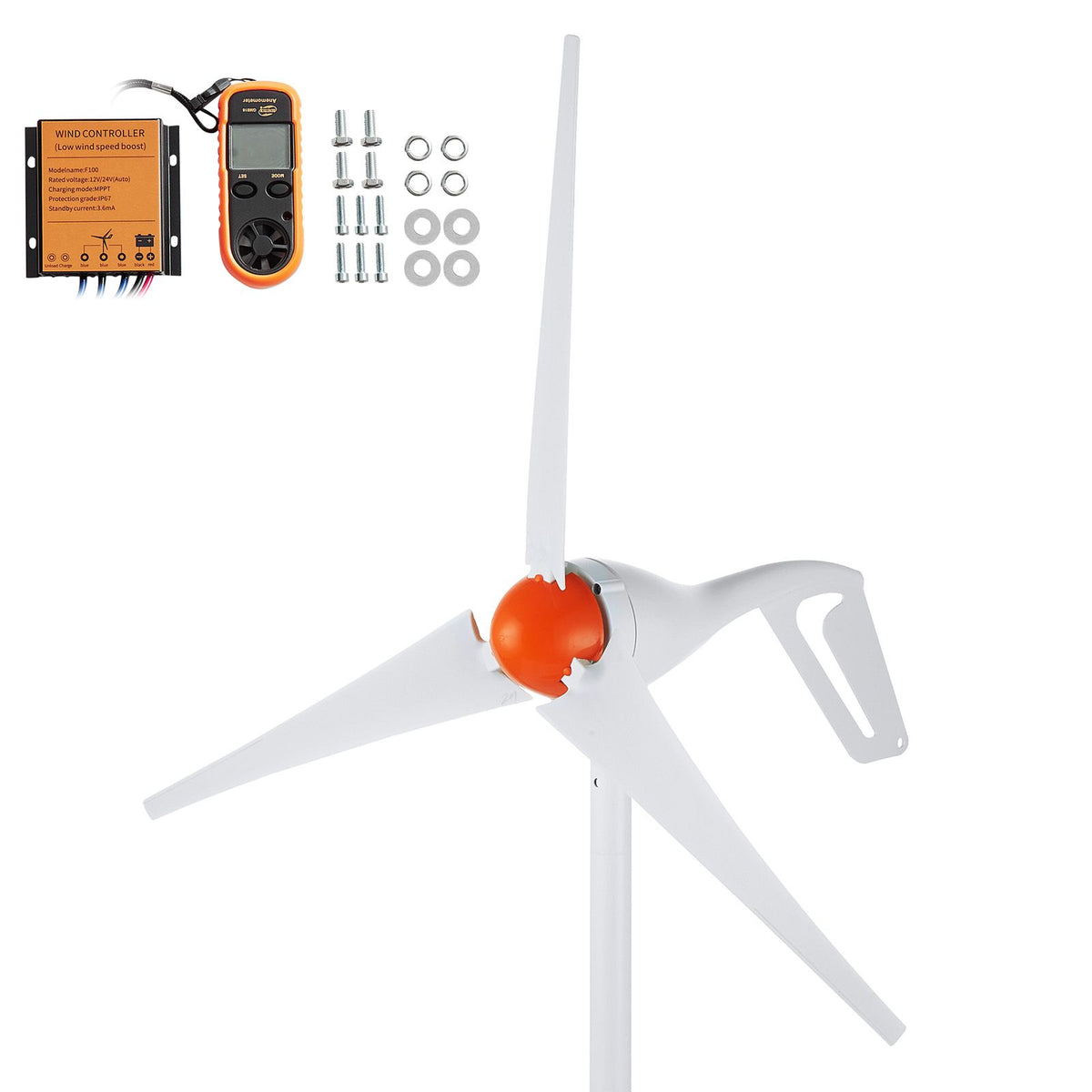

• 1 x Wind turbine generator
• 3 x Blades
• 1 x Nose cone
• 1 x MPPT controller
• 1 x Anemometer
• 1 x Mounting sleeve
• 1 x Pack of screws

Mounting pole, batteries and cabling are not included. Accessories or items shown in promotional imagery are not included unless listed above.

500W is the output at a rated wind speed of 12m/s (about 43km/h). Most sites average much less, so expect far lower day-to-day output. Mount the turbine as high as practical, clear of trees and buildings, on a properly engineered and guyed pole.

Installation involves working at height and with spinning blades. Check local council rules before erecting a mast, have battery and electrical connections done by a qualified person, and stop or secure the turbine before forecast storms. Inspect blades, bolts and bearings regularly.
